MGE-80 · ELECTRONIC 10-90 L/MIN · +/-1%

Print
Liquids: Diesel Diesel  Water Water

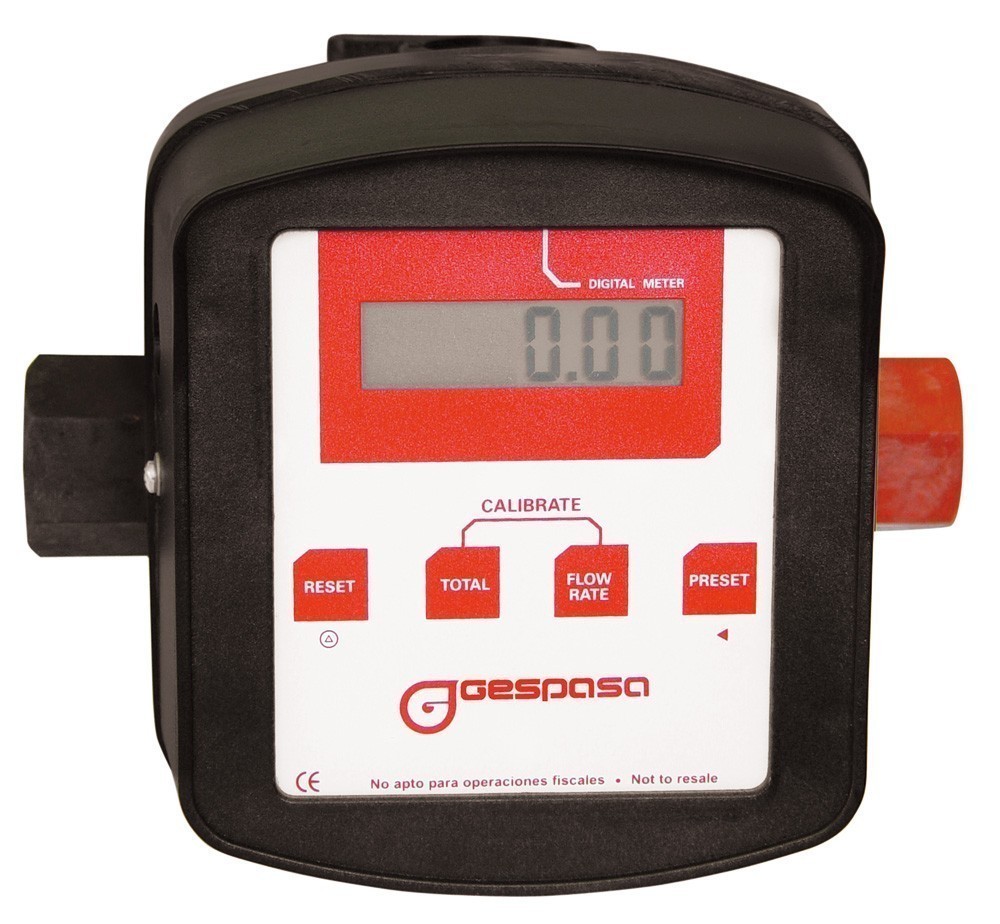

MGE-80 · Electronic meter
MGE-80V · Electronic meter with viton joints
  • It is suitable for diesel use (please, consult other liquids).
  • Fireproof measuring chamber with oscillant disc
  • Flow: 10-90l/min
  • Accuracy: +/- 1%
  • Partial indicator of 4 digits and 2 decimals with automatic reset and totalizer of 6 digits
  • Liquid crystal high luminosity Display
  • 1 lithium button battery of 3V CR2450
  • It works both with litres, gallons, pints and quarts.
  • Calibration function and totalizer stored in PERMANENT memory
  • Maximum operation pressure: 3,5bar
  • Maximum temperature: 60ºC
  • Polyamide + Fibreglass housing
  • Connection 1" GAS (BSP) with 3 inlets and 2 outlets
  • It is supplied with 2 additional Male/Female 1" GAS (BSP) adapters (other threads under order). The 1" GAS (BSP) red adapter has built-in the filter-sieve of 352 micron.
  • For private use, not suitable for fiscal operations

MGE-80 · ELECTRONIC
ACCESSORIES

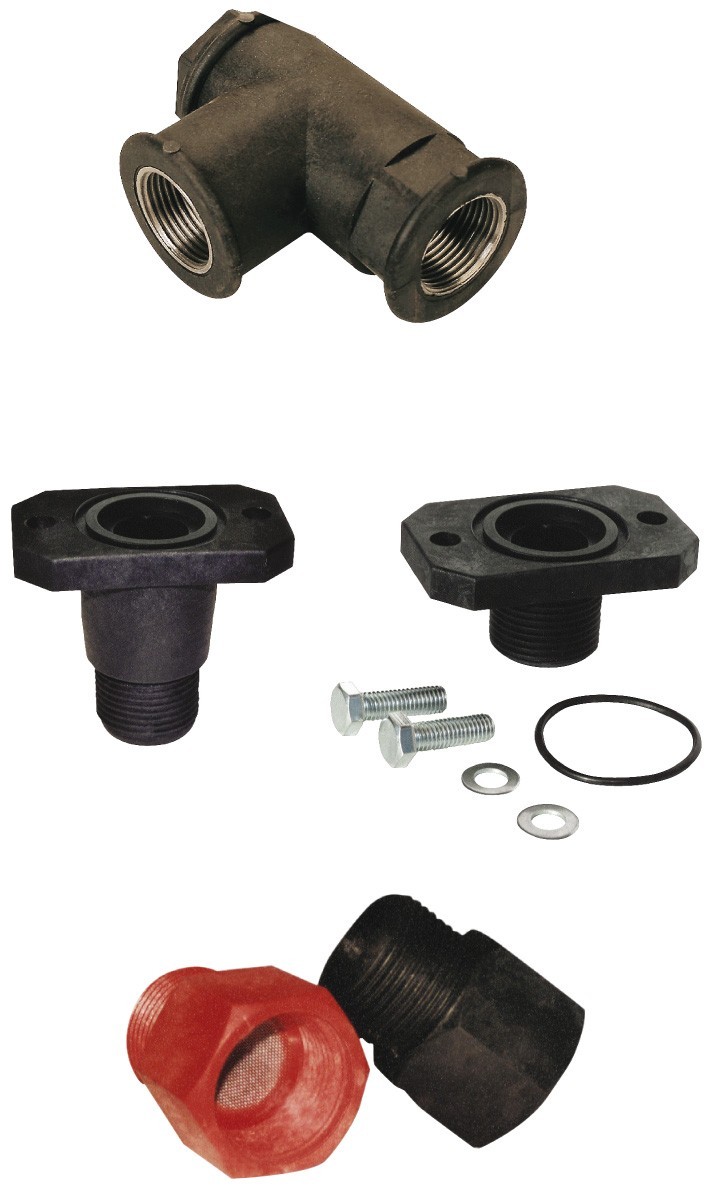

Optional accessories
- Filter FUP-1 FF1'' GAS (BSP) of 352 micron
- M1'' short union flange kit in PA+Fibreglass
- M1'' long union flange kit in PA+Fibreglass

Special plastic flange with 50% of fibreglass to be adapted to our meters, both mechanical an electronic meters, to pumps and/or pipes. It is optionally supplied with STAINLESS filter-sieve of 352 micron to avoid the impurities entry in the meter interior.

When you made an order it would be necessary to indicate in which connection you want this flange. This flange cannot be removed because of its special adhesive fixation. Otherwise we are supplying the flange kit so you can install it in any of the meter connections.

- Filter-sieve of 352 micron Ø33mm
- MM1'' brass union
- MF1'' PA+fibreglass adapter with BSP short thread
- MF1'' PA+fibreglass adapter with BSP long thread
- NBR Ø24x3,5 joint
- MF1'' PA+fibreglass adapter with BSP short thread with STAINLESS 352 micron sieve
ACCESSORIES
