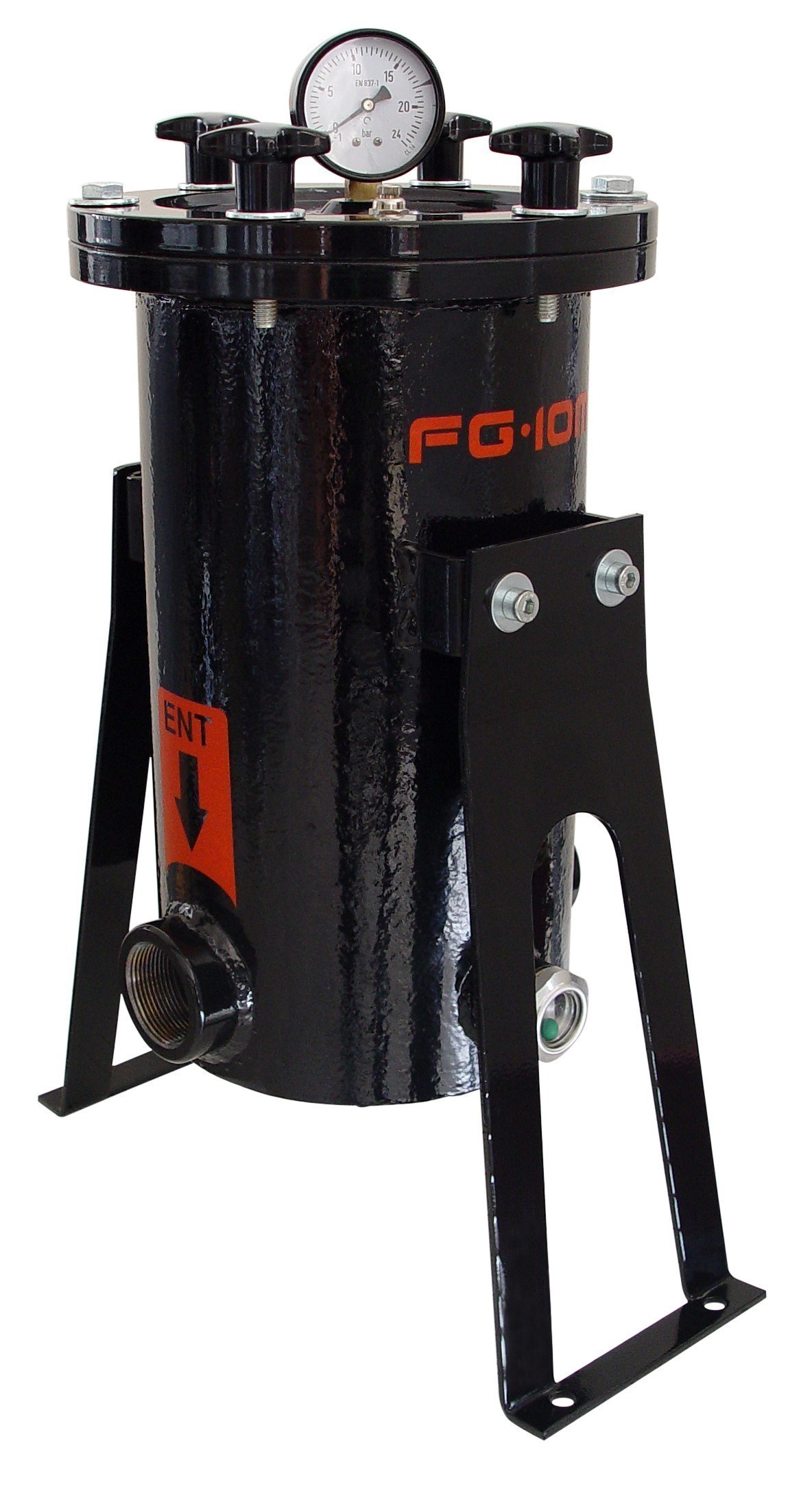

• It is suitable for particle microfiltration up to 5 micron. The filtering paper is water-repellent, allowing the water separation from the fuel. The polluted fuel and the impurities that are kept between the filtering cartridge and the vessel can be extracted.
• This filter has been made for the diesel, petrol, kerosene and hydrocarbon liquids in general microfiltration.
• EASY cleaning. It is only necessary to open the manual lower valve.

Technical features:

• Filtration: 5 micron
• Capacity: 10 litres in the housing interior
• Flow: 210 l/min
• Filter cover: Steel
• Filter vessel: Carbon steel with cataphoretic treatment
• Inlet / Outlet Connections: F1 1/2” GAS BSP
• Vacuum Gauge: -1+9bar
• Manual lower drain valve to pour impurities
• Filtering capacity: 1 million of litres (normal conditions)
• Installation: in the suction or delivery of the pumping kit
• Maximum operating pressure: 10bar (150 PSI)
